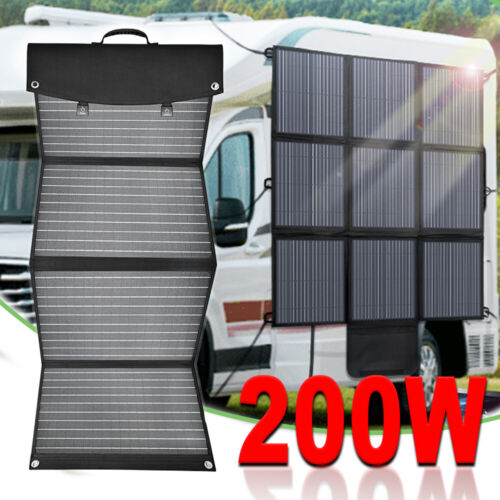

Lvyuan 200w - 400w Foldable Solar Panel Portable Solar Charger Rv Camp

ITEM DESCRIPTI

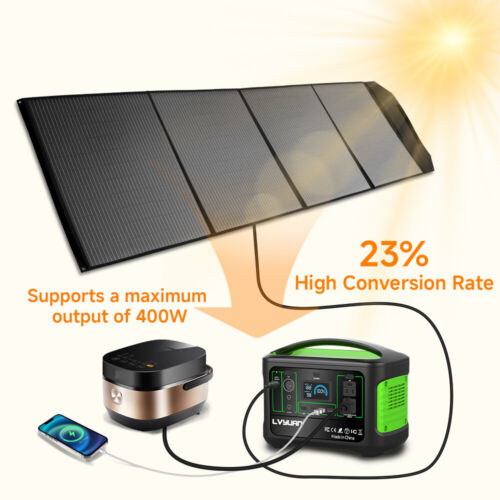

High-Efficiency Output: Unleash the power of 200W with lvyuan portable monocrystalline solar panel. With high energy conversion rate greater than 23%, it quickly meets your device charging needs. Whether at home or on the go, experience efficient charging that keeps you powered up.

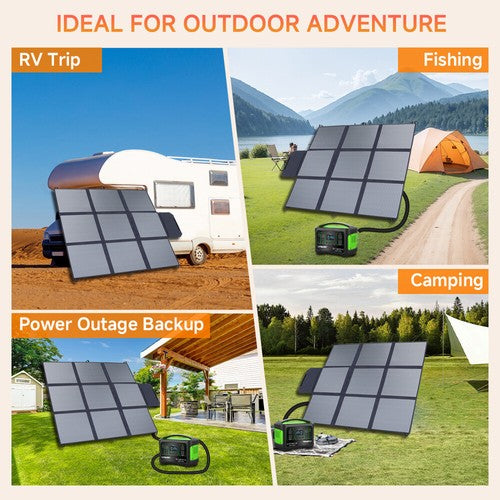

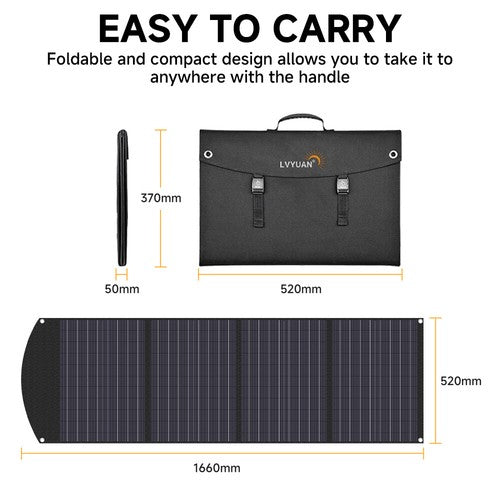

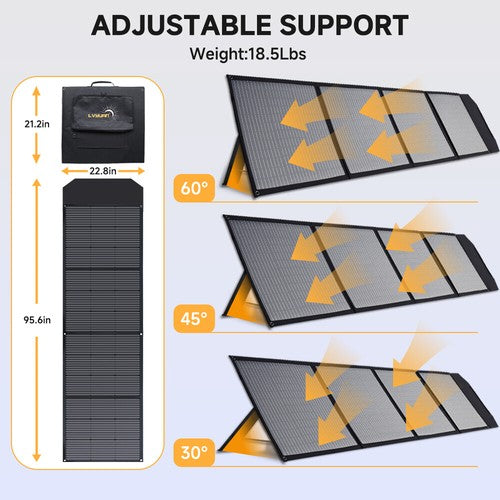

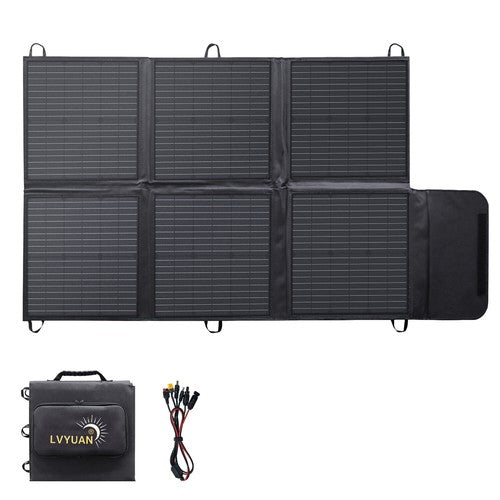

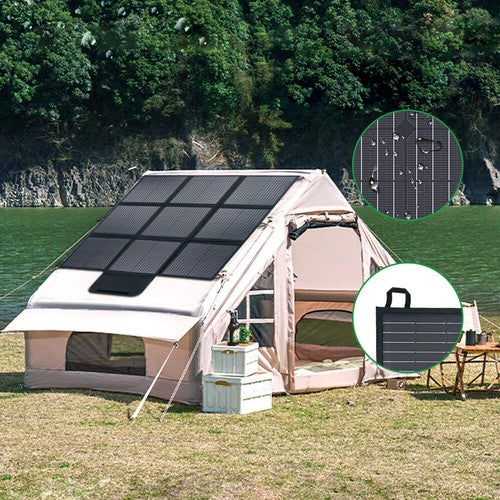

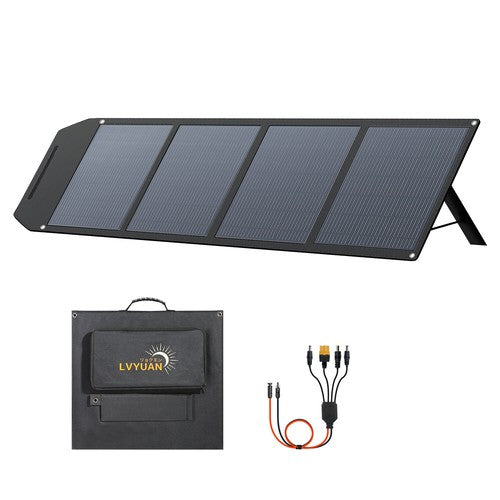

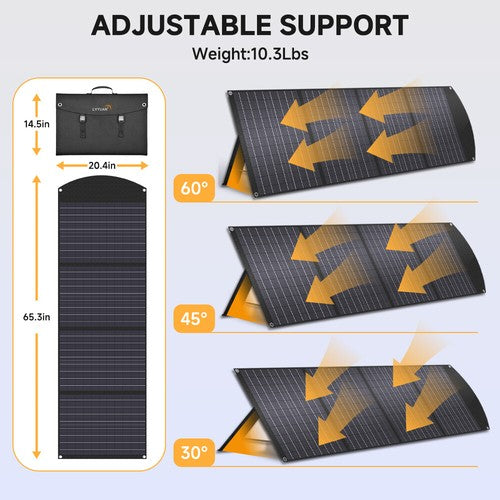

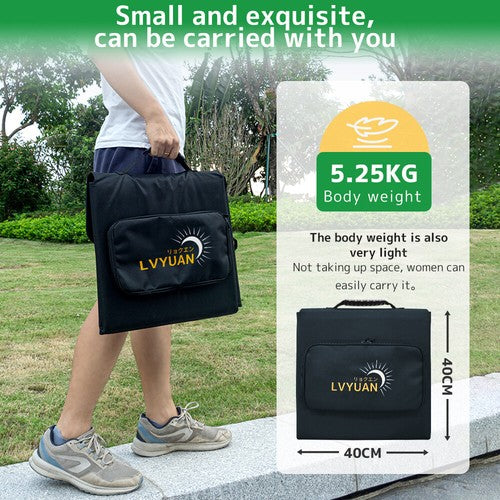

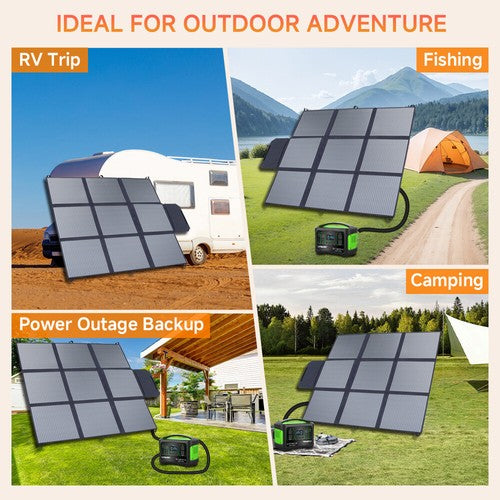

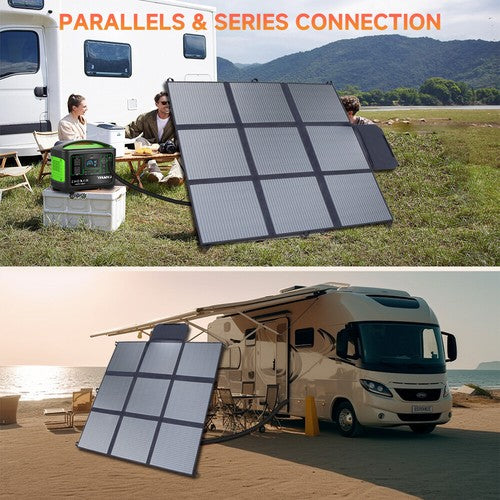

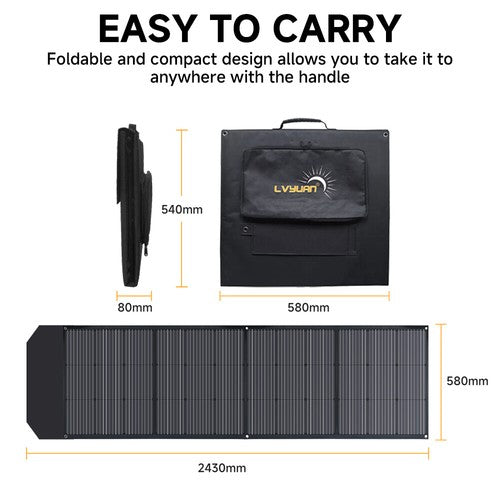

Foldable and Portable: Embrace the portability with our foldable monocrystalline solar charger. it's your perfect companion for house, RV, camping, hiking, and fishing trips, bringing efficient power right where you need it.

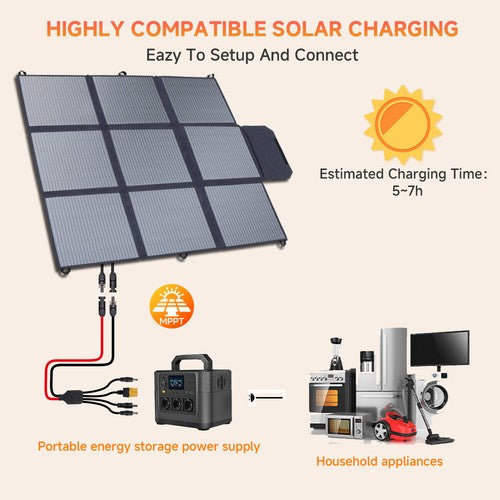

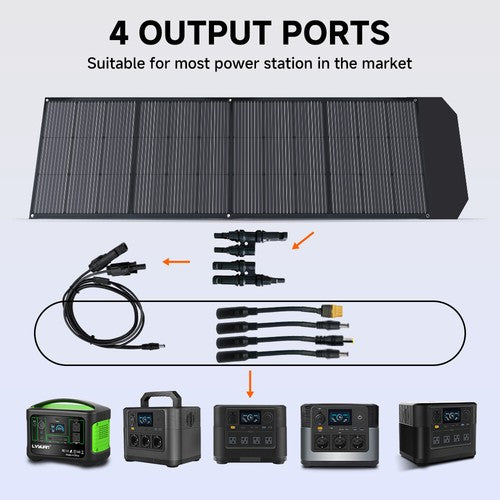

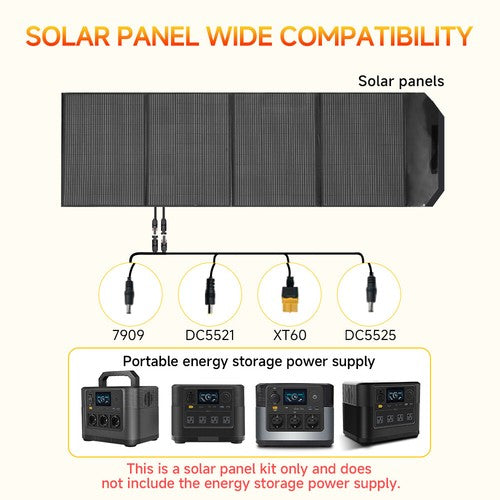

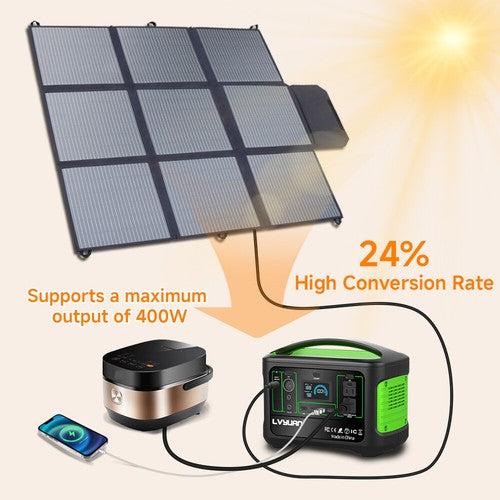

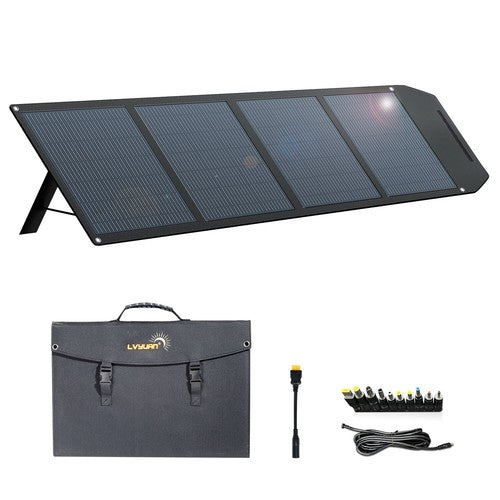

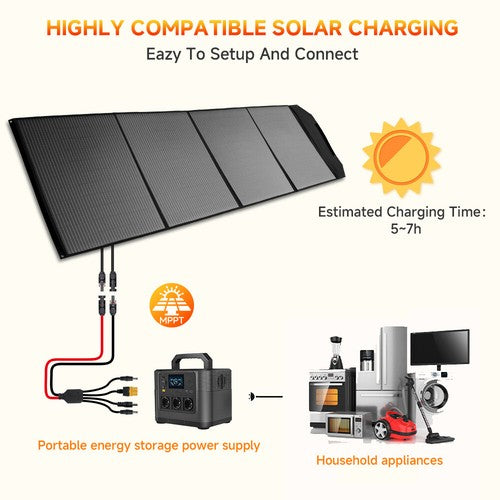

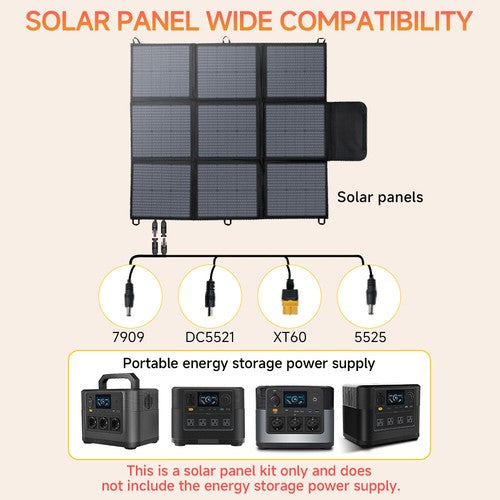

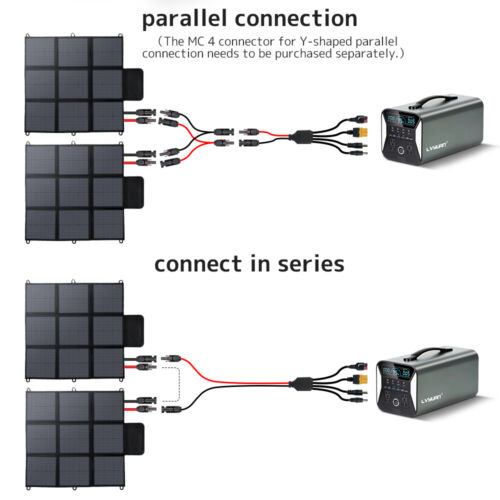

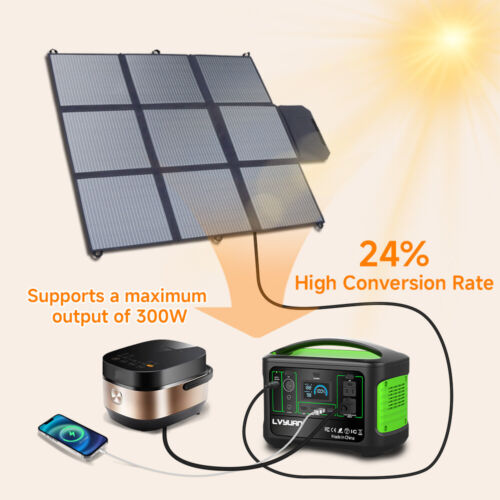

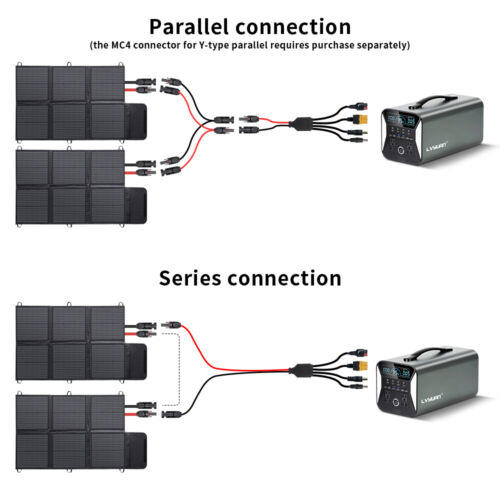

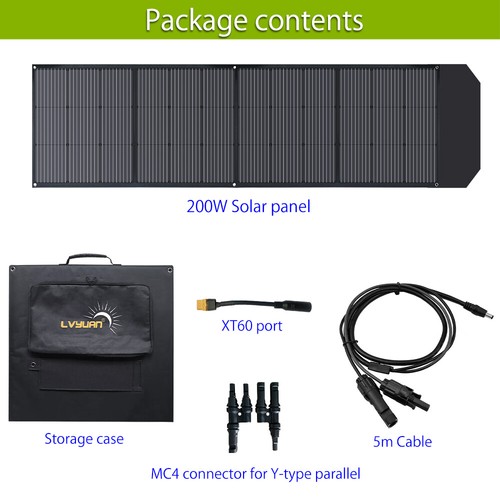

Wide Compatibility: With the built-in MC4 cable and the provided MC4 adapter cable 4-in-1, our 200W solar panel is widely compatible with most power stations, making renewable energy more accessible. Power your devices with clean energy, instantly available at your convenience.

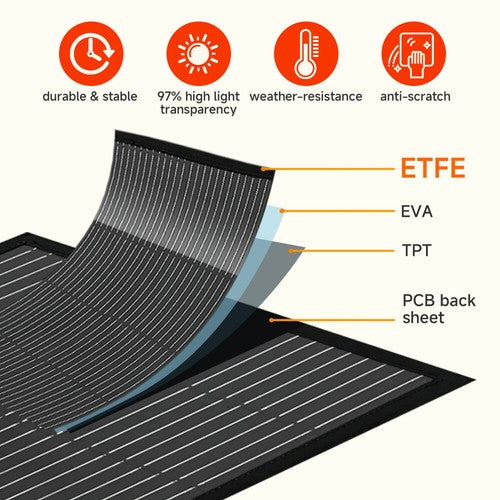

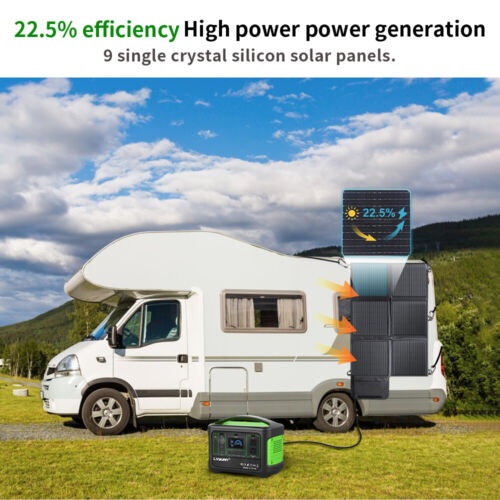

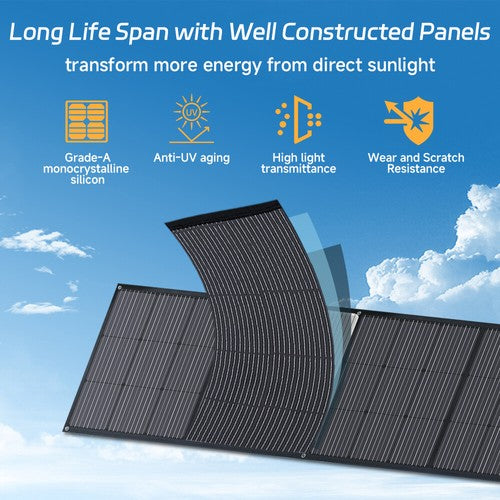

Superior Energy Conversion: Powered by high-transmittance monocrystalline solar cells, our monocrystalline solar panels boast high energy conversion rate greater than 23%, outperforming others at just 15%. Enjoy superior efficiency and more power, optimizing your energy use like never before.

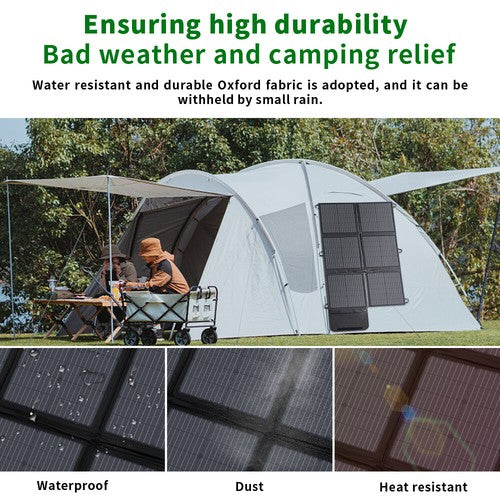

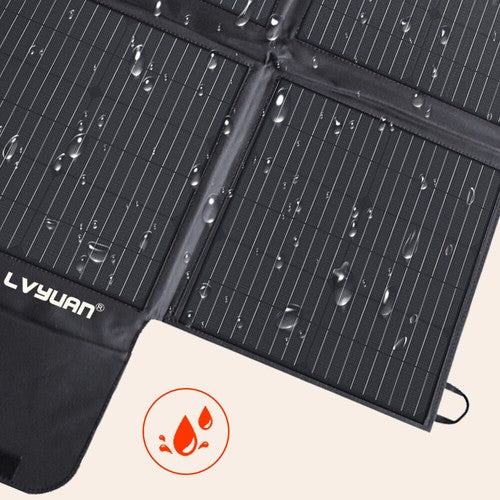

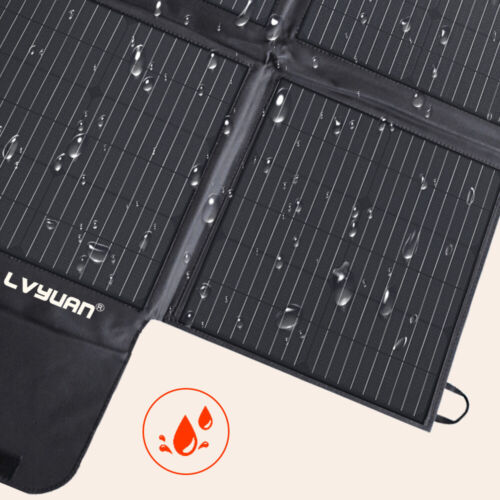

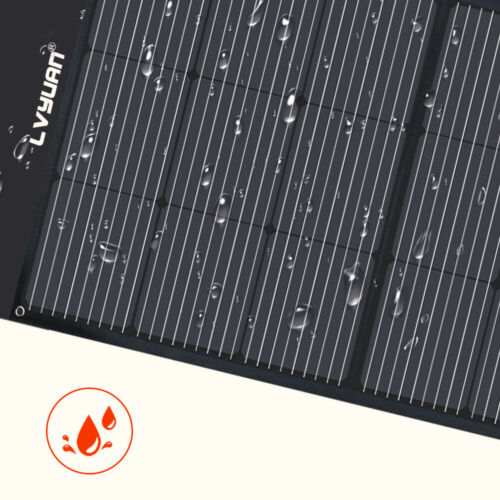

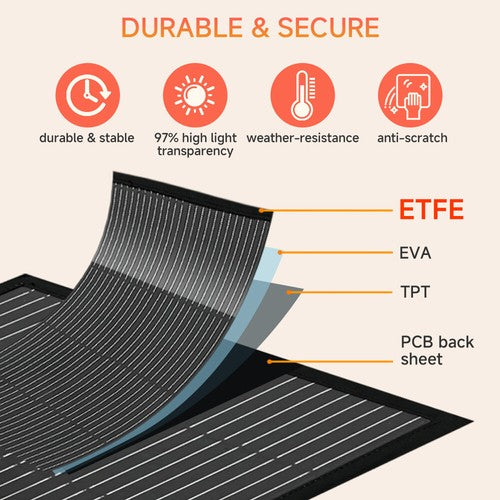

Reliable Energy Redefined,: Engineered to withstand the elements, our solar panel thrives in extreme conditions, from -10℃ to 65℃(optimal at 25℃). Cooperating with IP67 waterproof surface, it consistently delivers reliable energy and stable power, no matter the weather.

Specifications

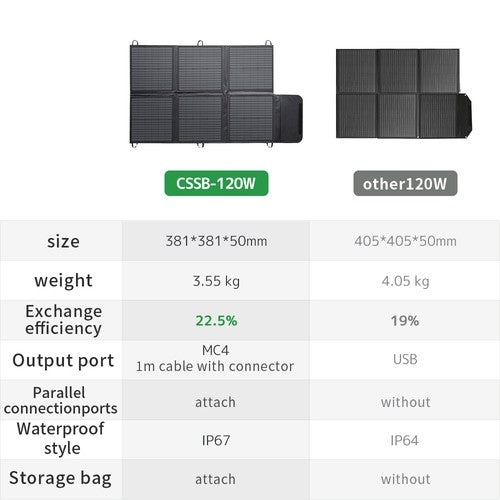

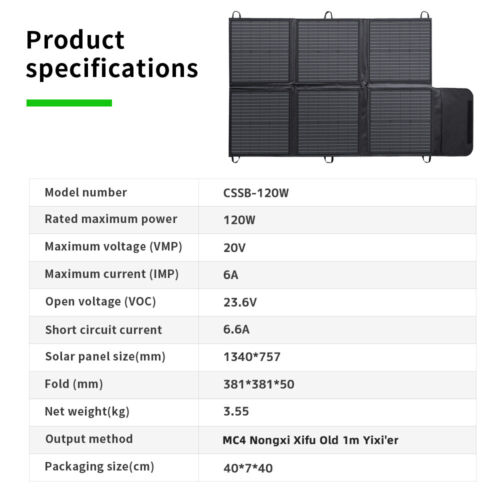

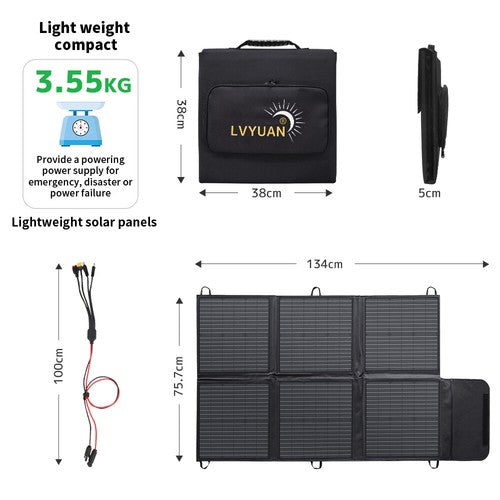

120W-ditan:

- RATED MAXIMUM POWER: 120W
- VOLTAGE AT PMAX (VMP): 20V CURRENT AT PMAX (IMP): 6A
- OPEN-CIRCUIT VOLTAGE (VOC): 23.6V
- SHORT-CIRCUIT CURRENT (ISC): 6.6A
- DIMENSIONS (mm): 1340*757
- FOLDED DIMENSION (mm): 381*381*50
- NET WEIGHT(kg): 3.55

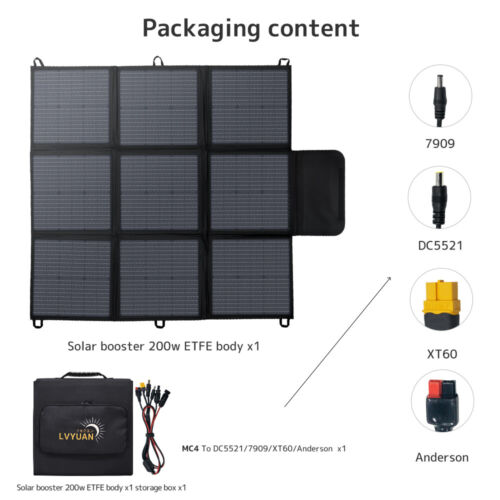

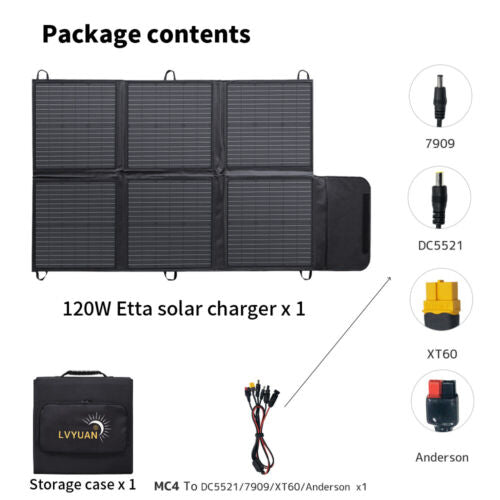

- Output: 1meter cable with MC4 connector(1meter MC4 to DC5521/7909/XT60/Anderon).

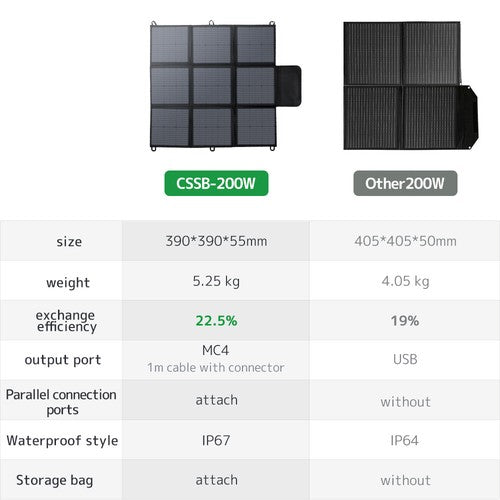

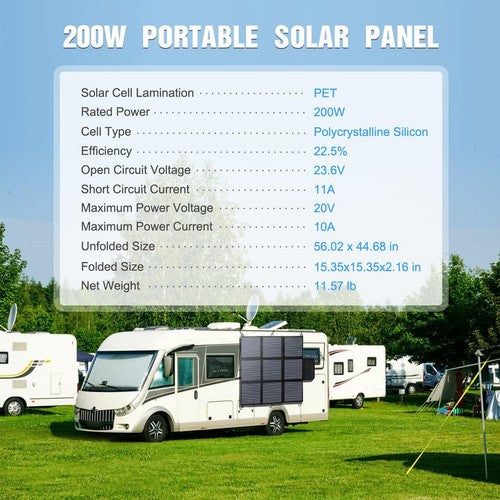

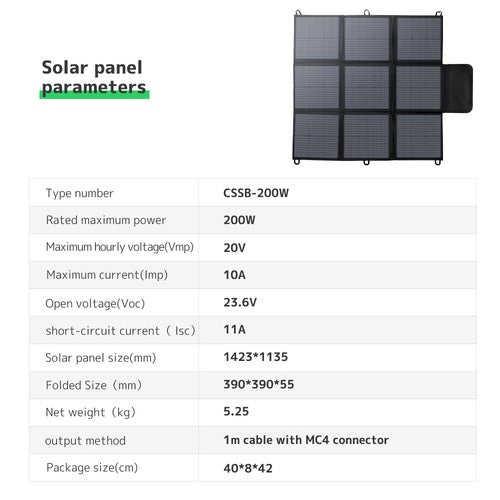

200W-ditan:

- RATED MAXIMUM POWER: 200W
- VOLTAGE AT PMAX (VMP): 20V CURRENT AT PMAX (IMP): 10A
- OPEN-CIRCUIT VOLTAGE (VOC): 23.6V
- SHORT-CIRCUIT CURRENT (ISC): 11A
- DIMENSIONS (mm): 1423*1135
- FOLDED DIMENSION (mm): 390*390*55
- NET WEIGHT(kg): 5.25
- Output:1meter cable with MC4 connector(1meter MC4 to DC5521/7909/XT60/Anderon).

120W-4zhe::

- RATED MAXIMUM POWER: 120W
- VOLTAGE AT PMAX (VMP): 20V CURRENT AT PMAX (IMP): 6AA
- OPEN-CIRCUIT VOLTAGE (VOC): 23.6V
- SHORT-CIRCUIT CURRENT (ISC): 6.6A
- DIMENSIONS (mm): 1675*548
- FOLDED DIMENSION (mm): 548*380*45
- NET WEIGHT(kg): 4.6
- Output: 1meter cable with DC5521 connector(1meter DC5521 to DC5521/XT60/10 DC adapter).

200W-4zhe:

- RATED MAXIMUM POWER: 200W
- VOLTAGE AT PMAX (VMP): 20V CURRENT AT PMAX (IMP): 10A
- OPEN-CIRCUIT VOLTAGE (VOC): 23.6V
- SHORT-CIRCUIT CURRENT (ISC): 11A
- DIMENSIONS (mm): 1423*1135
- FOLDED DIMENSION (mm): 390*390*55
- NET WEIGHT(kg): 5.25
- Output: 1meter cable with MC4 connector(1meter MC4 to DC5521 and 10CM to XT60).

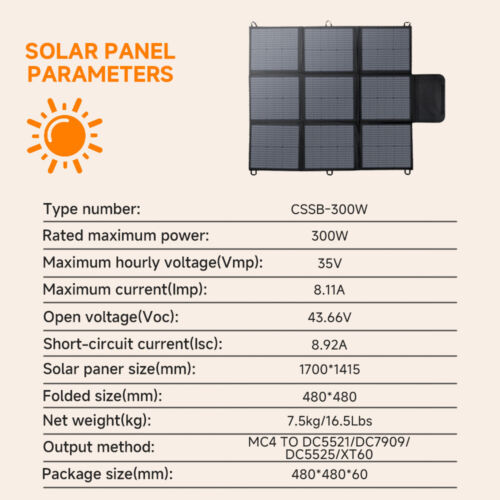

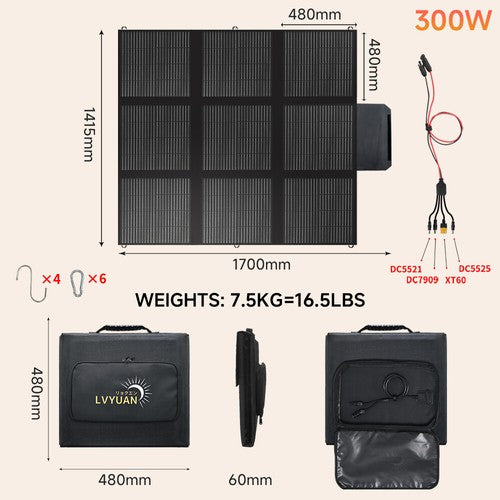

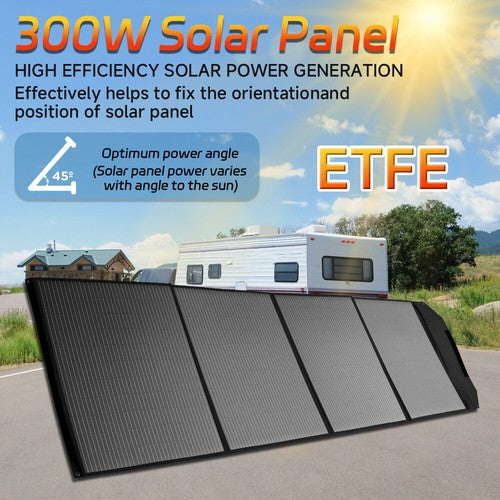

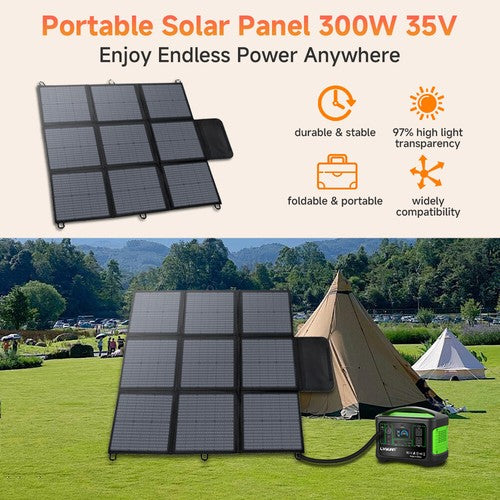

300W-ditan:

- RATED MAXIMUM POWER: 300W
- VOLTAGE AT PMAX (VMP): 35V CURRENT AT PMAX (IMP): 8.11A
- OPEN-CIRCUIT VOLTAGE (VOC): 43.66V
- SHORT-CIRCUIT CURRENT (ISC): 8.92A
- DIMENSIONS (mm): 1700*1415
- FOLDED DIMENSION (mm): 480*480
- NET WEIGHT(kg): 7.5kg
- Output:1meter cable with MC4 connector(1meter MC4 to DC5521/DC5525/DC7909/XT60).

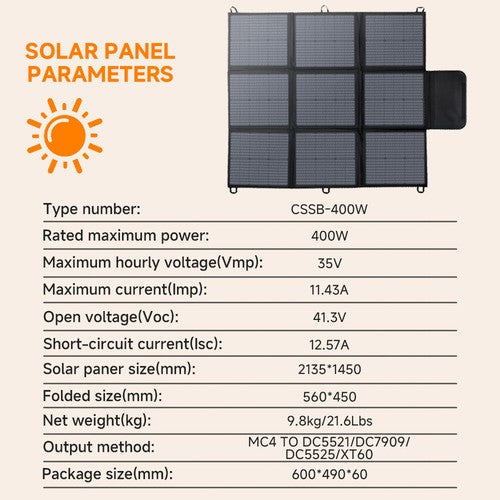

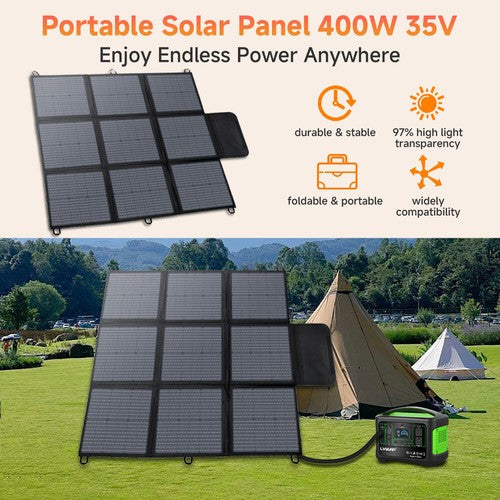

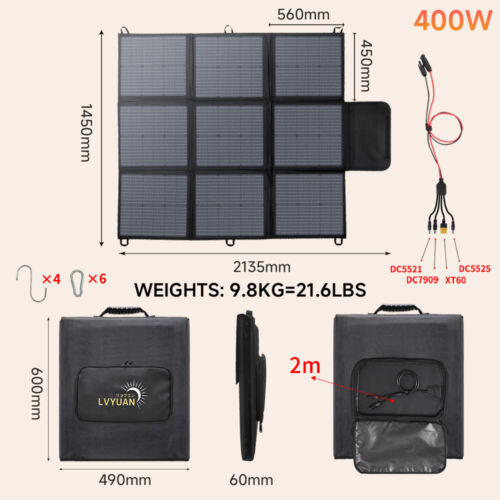

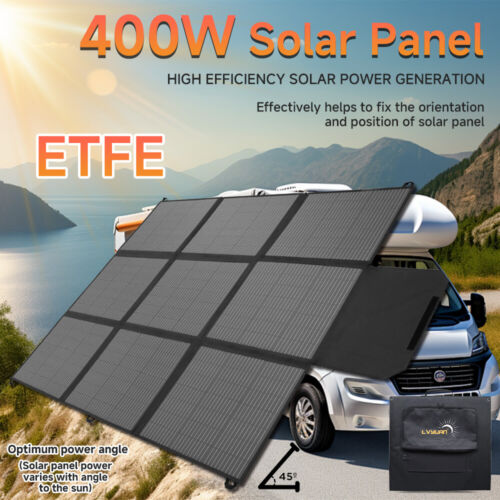

400W-ditan::

- RATED MAXIMUM POWER: 400W
- VOLTAGE AT PMAX (VMP): 35V CURRENT AT PMAX (IMP): 11.43A
- OPEN-CIRCUIT VOLTAGE (VOC): 41.3V
- SHORT-CIRCUIT CURRENT (ISC):12.57A
- DIMENSIONS (mm): 2135*1450
- FOLDED DIMENSION (mm): 560*450
- NET WEIGHT(kg): 9.75
- Output: 1meter cable with MC4 connector(1meter MC4 to DC5521/DC5525/DC7909/XT60).

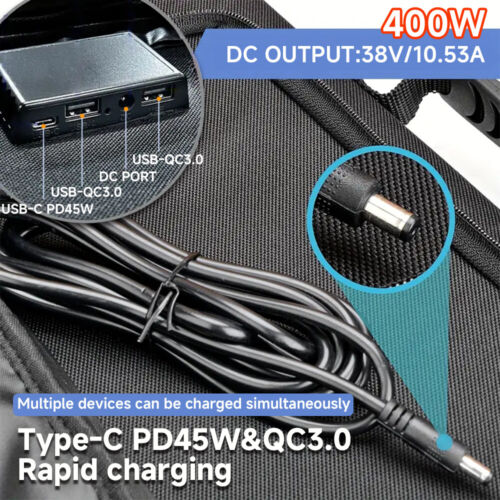

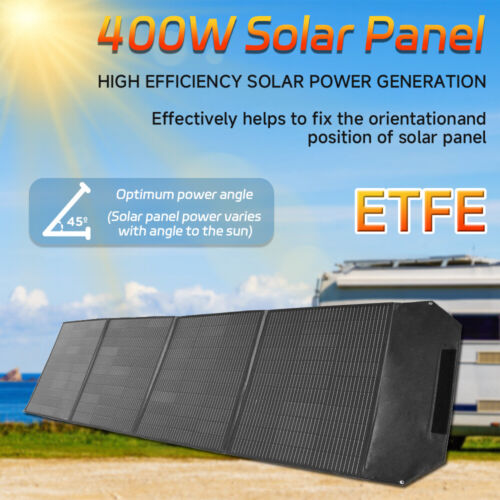

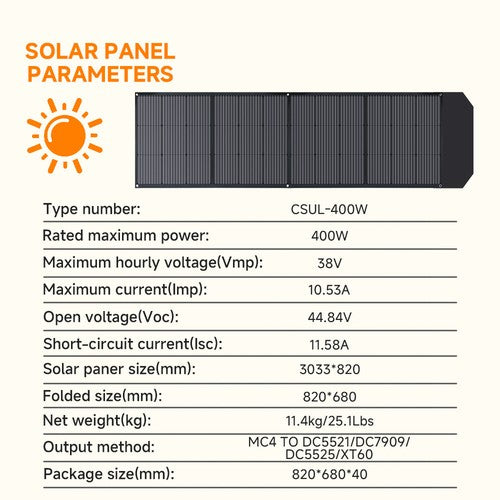

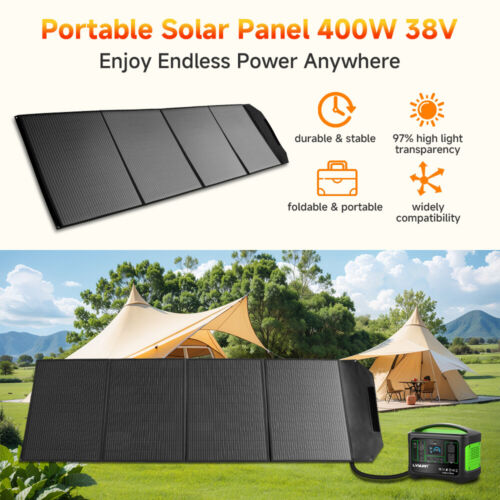

400W-4zhe::

- RATED MAXIMUM POWER: 400W
- VOLTAGE AT PMAX (VMP): 38V CURRENT AT PMAX (IMP): 10.53A
- OPEN-CIRCUIT VOLTAGE (VOC): 11.58V
- SHORT-CIRCUIT CURRENT (ISC): 6.6A

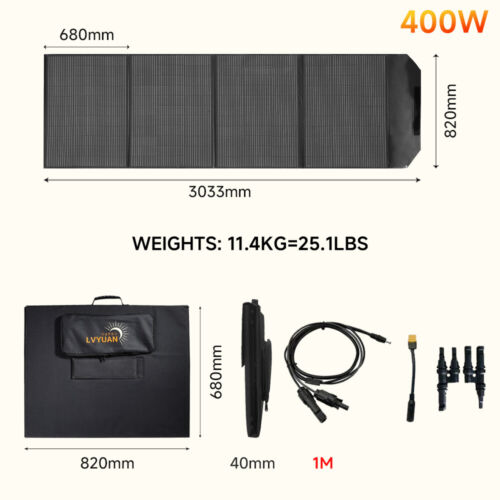

- DIMENSIONS (mm): 3033*820
- FOLDED DIMENSION (mm): 820*680*40
- NET WEIGHT(kg):11.4
- Output: 1 meter cable with MC4 connector (1meter MC4 to DC5521/DC5525/DC7909/XT60).
